    CRMX and W-DMX 2.4G Wireless DMX Transmitter and receiver

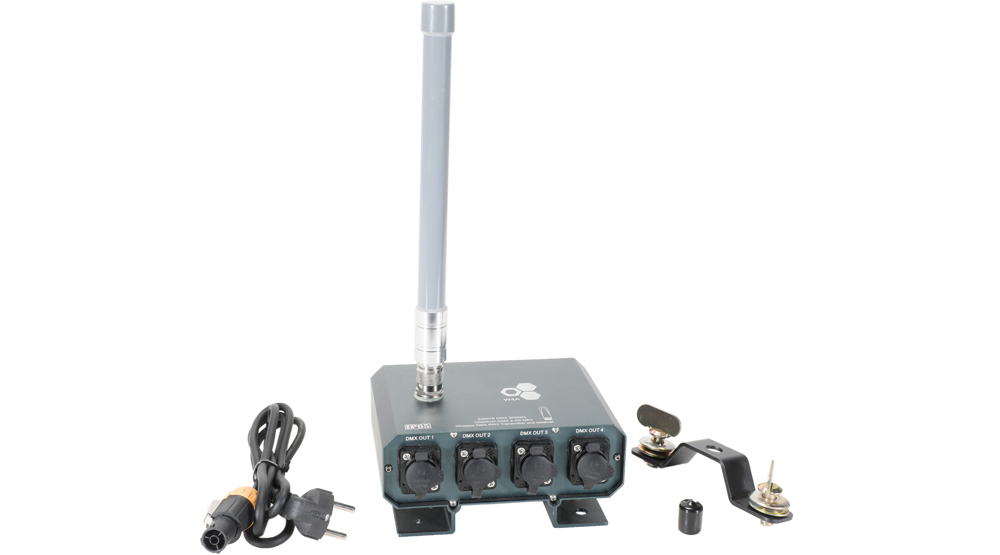

    Wireless DMX + Splitter 4 way



    OKCox continues to deliver the most reliable Wireless DMX with both CRMX and W-DMX compatibility, featuring Linking Key* along with industry standard 5 ms latency, error correction and 128 bit encryption at full refresh rate for a full universe.


    Radio card from Wireless Solution SwedenAdaptive Frequency hopping technologyWorldwide 2.45G Radio-License free.
    Transmission distance: 500m (inof-sign), simple setup and operation100% electrical isolation.



    IP65 rating for indoor and outdoor.

    1. of Channels:58
    2. Latency in mSec: Less 5mS
    3. Transmitter Power in mW:100mW
    4. Frequency Band in MHz/GHz: 2,4GHz
    5. Receiver Sensitivity in dBm:98dBm
    6. of Universe:1 per Transmitter PCB
    7. of Channel Groups: N/A (Only China Wireless)
    8. Range (Distance):Up to 500 meter, LoS, 3m over ground level
    9. Antenna Length (IE 1/4 wave, 1/2 wave, etc.): Standard 5dBi antenna
    10. Antenna Type (IE fixed/removable, and list type of connector): Removable, RP-SMA
    11. Max. Number of Simultaneous Systems: 6 Universes without settings, up to 16 in advance mode
