    • ITEM No : D2C

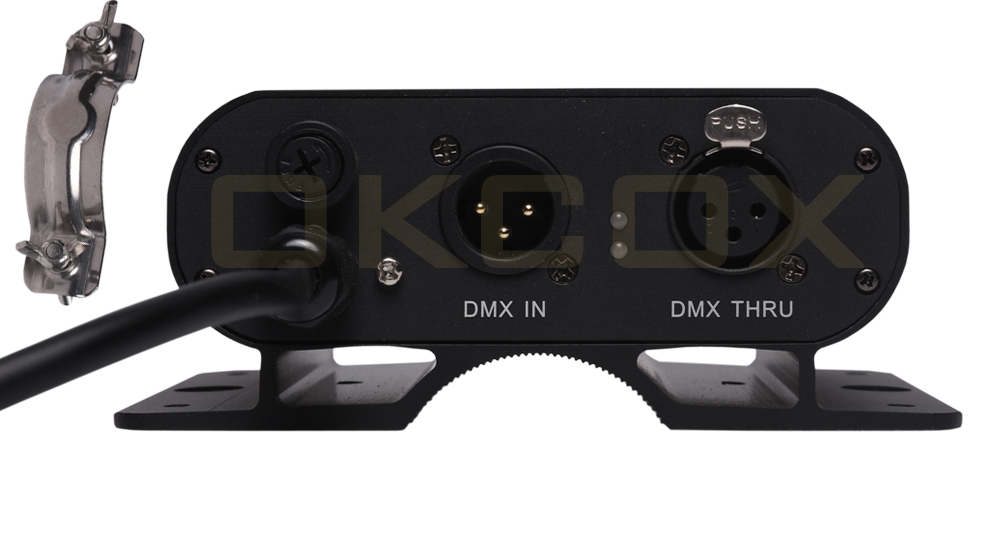

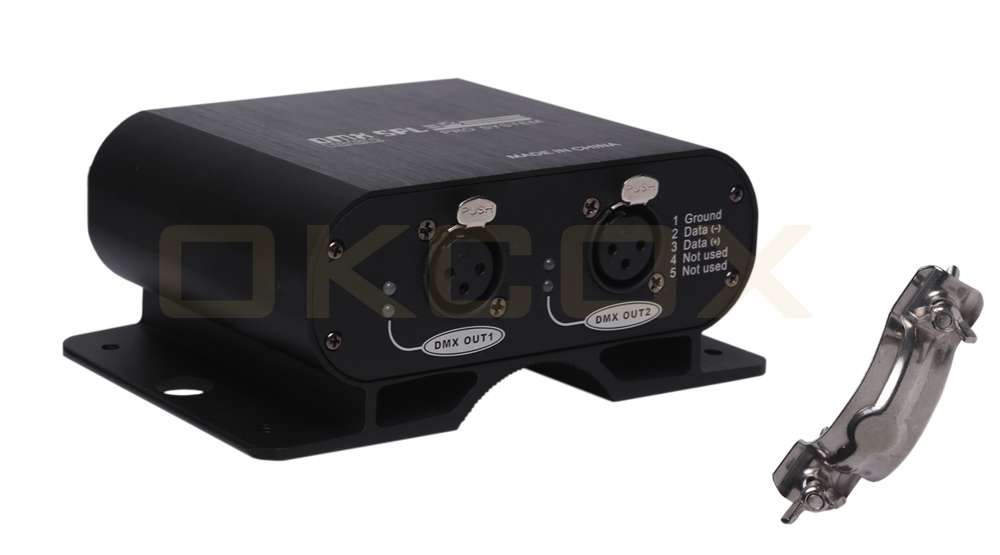

    DMX Splitter/Booster 2

    DMX Splitters are particularly in demand for DMX512 applications covering long distances, where unwanted nterferences and frequencies are to be avoided.

    The DMX Splitter functions as a signal distributor and booster. 1 input to 2 DMX outputs, each equipped with 3 pin or 5 pin XLR connectors for compatibility in any DMX setup and 100% electrical isolation between all in/outputs.
    Signal and power LED indicators on front panels for each output is useful to detect error.



    PATENT NO.:2016202478101


    1. Aluminum chassis
    2. Fully compliant to DMX-512 (1990)
    3. 3pin & 5pin DMX Input and DMX Thru
    4. 100% electrical isolation between in/output
    5. 100% electronic isolation between output/output
    6. Signal & power LED indicator for each output
    7. Termintor resistor switch for end of a DMX chain
    8. Power input via IEC connector on rear panel

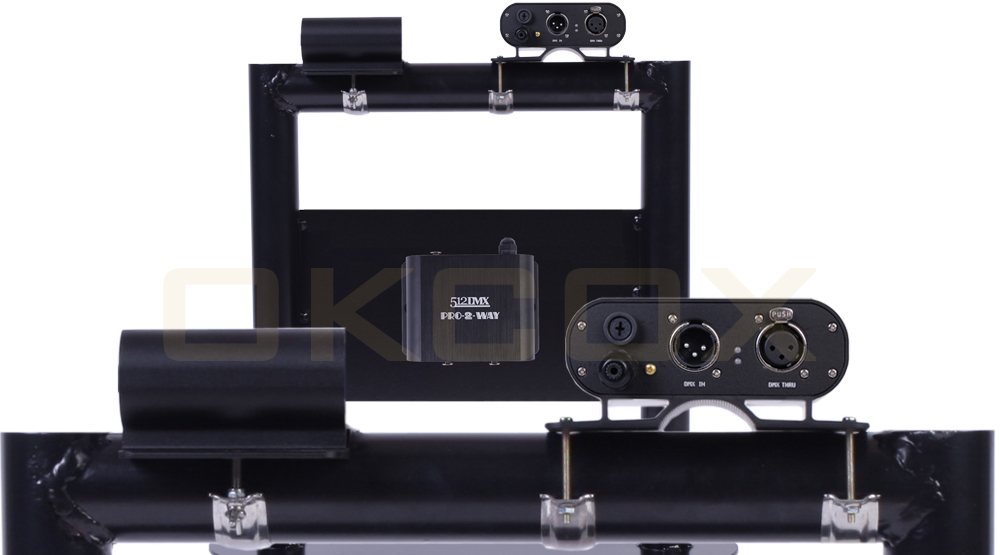

    9. Fastener for Rack mount or wall mount
